Product Description:

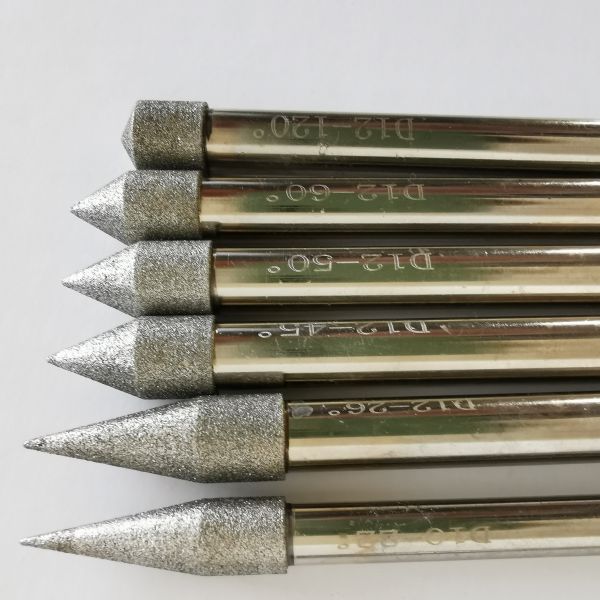

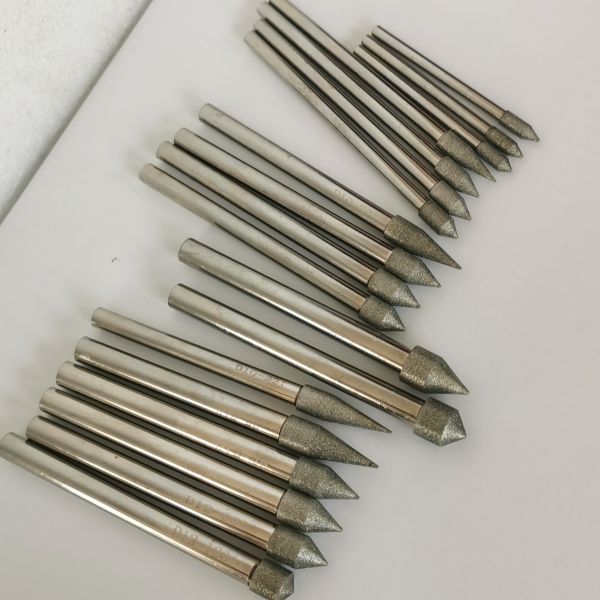

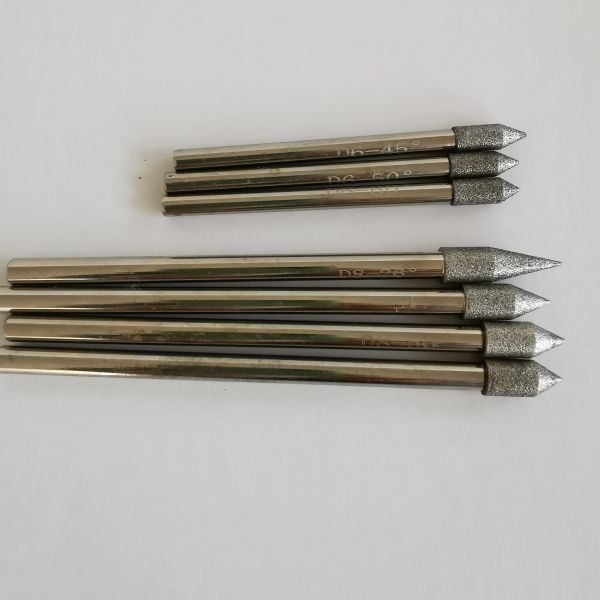

Electroplated diamond grinding heads are small grinding tools that utilize an electroplating process to fix diamond abrasive particles onto a metal substrate. They are characterized by high hardness, high grinding efficiency, and high precision, and are widely used for engraving, grinding, trimming, and finishing hard and brittle materials such as cemented carbide, gemstones, jade, ceramics, and glass. They can be installed on electric grinders, flexible shaft grinders, or hand drills to achieve high-precision machining.
The base of the grinding head is typically made of 45# steel, stainless steel, high-speed steel, or tool steel. It serves a supporting and mounting function, and its shape is customized according to requirements, generally including cylindrical, conical, spherical, and curved shapes. The bonding layer is mainly nickel or nickel-cobalt alloy. It is grown by electrodeposition, mechanically embedding and fixing the diamond particles. The abrasive layer consists of diamond particles. Different particle sizes, concentrations, and grades are selected according to processing requirements.
Technical Parameters:
| Material |
High-speed steel |
| Abrasive layer |
Diamond |
| Length |
80mm,120mm |
| Package |
Individually sealed packaging |
| Delivery time |
7 -10 days |
| Grit Size |
Based on your needs |
| Country Of Origin |
China |
| Application |
For Cemented Carbide |
| Size |
customized |
Applications:
1,Sharpening and regrinding of carbide cutting tools: back angles and cutting edges of drills, end mills, reamers, etc.
2,Precision grinding and polishing of molds: especially complex, narrow grooves and edges.
3,Internal grinding of carbide workpieces: grinding of small diameter and non-standard holes.
4,Surface machining of carbide rolls and forging dies.
5,Form grinding of carbide gears and grooves.
FAQ:
Q1: Do you offer samples ?
A1: We sincerely want to cooperate with you, so we will provide samples for you to test.
Q2: What is the minimum order quantity and unit price?
A2: Most of our products are custom-made, so the minimum order quantity and unit price vary depending on the product.
Q3: How do you ship your products?
A3: We ship via international express such as FedEx, UPS, TNT, EMS, DHL, SF Express, etc. For large orders, we can choose to ship by sea. You can choose to pick up the goods at the port closest to you.
Q4: What materials are used in your products?
A4: Our abrasives primarily use diamond and CBN. We can recommend a suitable bond based on your needs, including electroplating, resin, ceramic, and metal bonds.
Q5: Can you provide different types of packaging according to customer needs?
A5: Yes, we can label and package according to your requirements.
Q6: How can you guarantee the quality ?
A6: We have a complete quality management system, strictly manage quality during the production process, and provide one-to-one after-sales service.
Q7: How long do you expect to deliver?
A7: After you place your order, pay, and confirm your drawings, we'll arrange production. Delivery is expected to take approximately 7-10 days.
Q8: Can I ship through my own freight forwarder? Are customers allowed to use their own freight forwarder for shipping?
A8: Yes, If you have your own freight forwarder, you can come to pick up the goods. Or we can ship to your freight forwarder.
